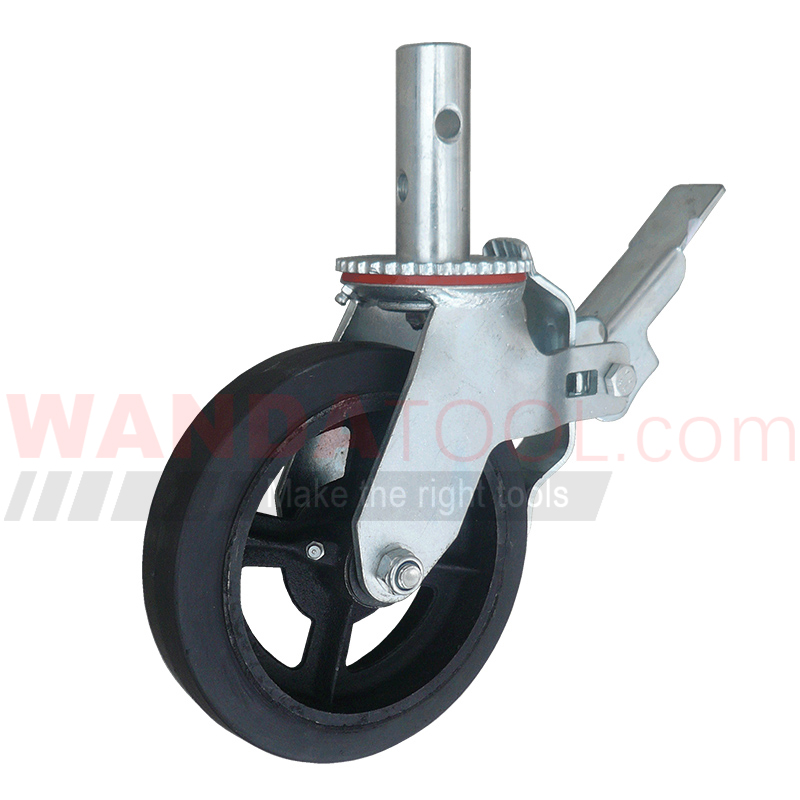

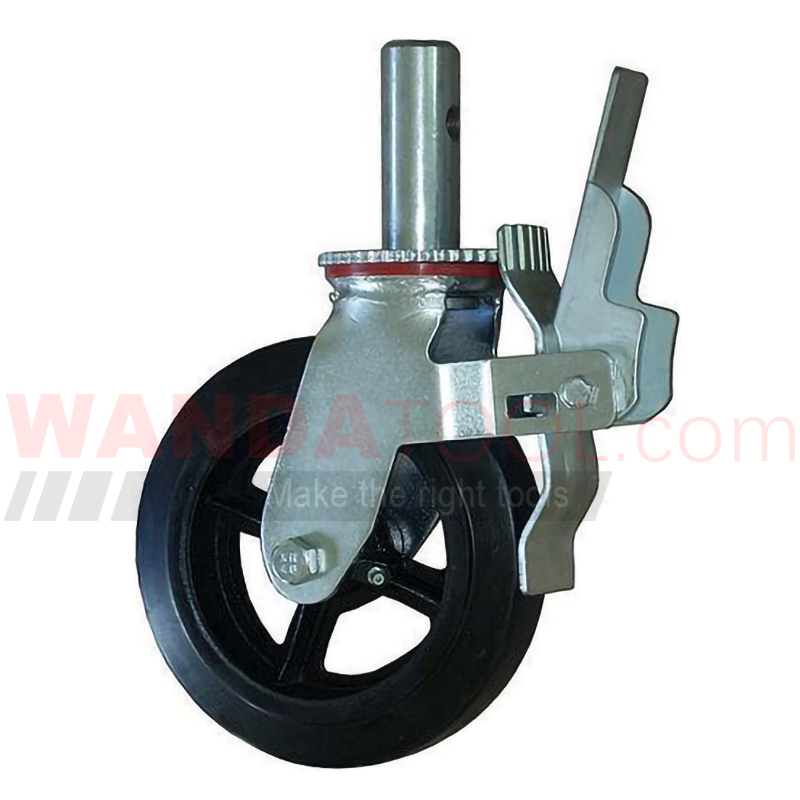

Scaffolding caster - 8 in. Scaffold caster - Solid stem standard scaffold caster | SCAFA-200050R-12

Part No.: SCAFA-200050R-12
Wheel Dia.: 200mm / 8inch caster

Tread Width: 50mm / 2inch caster
Wheel Type: Moldon rubber wheel

Caster Type: Total lock swivel caster
Fitting Type: Solid round stem caster

Load Cap.: 300kg / 660lbs caster
APP: Scaffolding caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Scaffolding caster - 8 in. Scaffold caster - Solid stem standard scaffold caster \| SCAFA-200050R-12.

Details

Technical Data

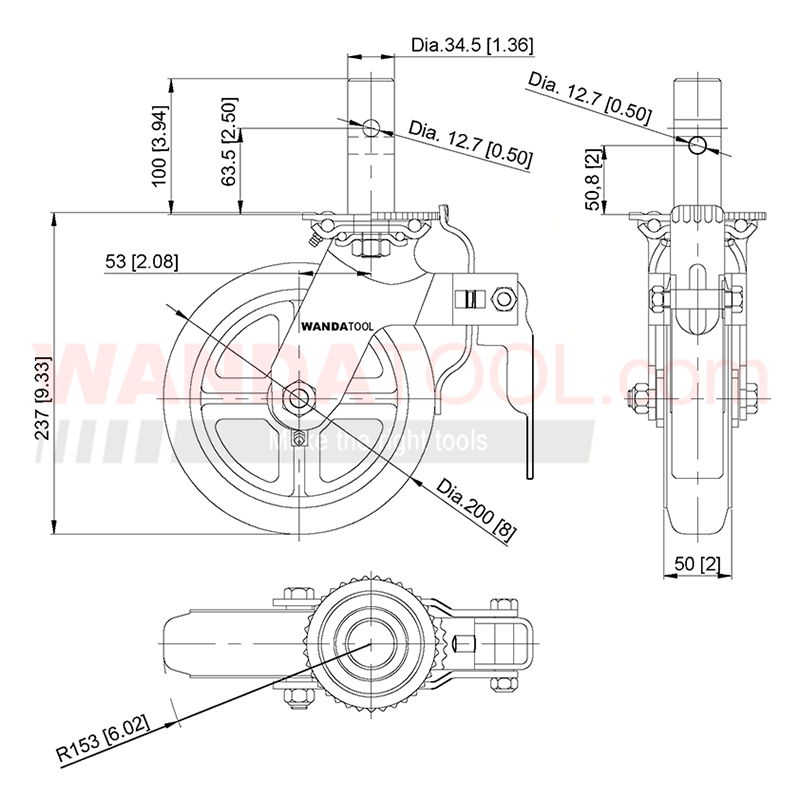

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter (D)	200 mm	8 inch
Width of Tread (W)	50 mm	2 inch
Wheel Material	Moldon rubber wheel on cast iron
Hardness of Tread	Shore A 85
Wheel Bearing	Roller bearing
Caster Brake	Total lock swivel caster
Fitting Type	Solid round stem caster
Stem O.D.	34.5 mm	1.36 inch
Stem Length	100 mm	4 inch
Hole Spacing (L1)	63.5 mm	2.5 inch
Hole diameter (P1)	12.7 mm	0.5 inch
Hole Spacing (L2)	50.8 mm	2 inch
Hole diameter (P2)	12.7 mm	0.5 inch
Swivel Offset	53 mm	2.08 inch
Swivel Radius	153 mm	6.02 inch
Overall Height	237 mm	9.33 inch
Load Capacity	300 kg	660 lbs
Caster Weight	5.3 kg	11.7 lbs
Packing
Remark
Part No.	SCAFA-200050R-12
SKU	6920000870

Features

8"×2" Solid stem standard scaffold caster with moldon rubber wheel | SCAFA-200050R-12

8-inch Mold-on rubber on cast iron core solid stem standard scaffold caster are equipped with total lock brakes. This is a standard scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAFA series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

Featured 8 inch Solid stem standard scaffold caster with moldon rubeer wheel

Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.
Mounting and Swivel Cross Section: 34.5mm Diameter solid stem. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.
Swivel head sealed: Polyurethane seal ring keeps out debris.
Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
Mold-on Rubber Wheel: Mold-on cushion rubber treads are vulcanized to cast iron cores. The soft rubber tread affords a cushion effect to the load. These wheels are highly shock-absorbing and provide quiet operation, while dampening vibration.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
