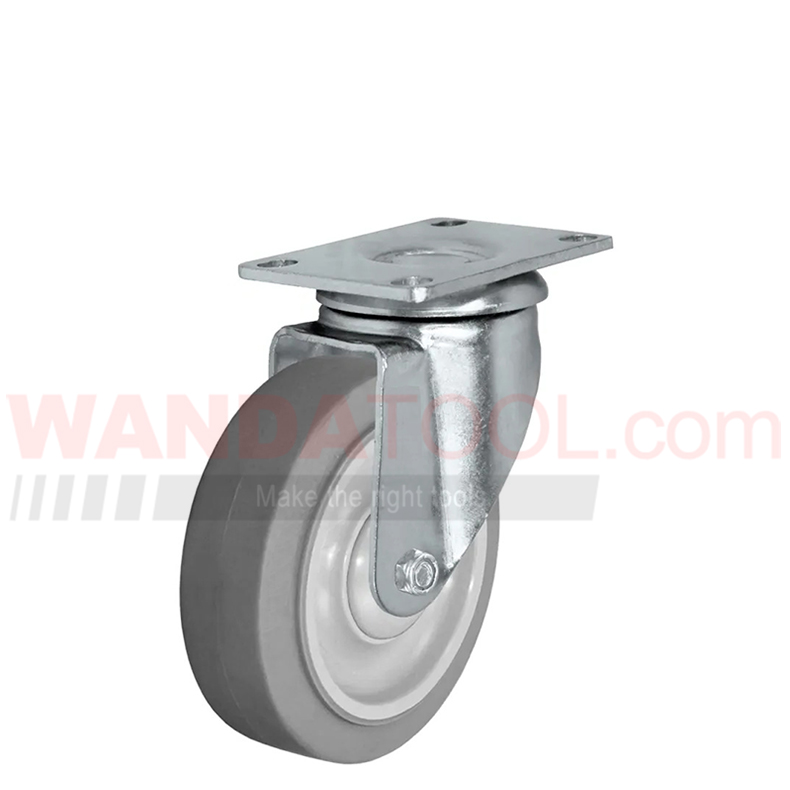

5"×1.25" TPR thermoplastic rubber wheel - Swivel top caster - 325lbs capacity | 330PS-125032ANB-92GF

Part No.: 330PS-125032ANB-92GF
Wheel Dia.: 126mm / 5inch caster

Tread Width: 32mm / 1.25inch caster
Wheel Type: Grey TRP wheel

Caster Type: Swivel caster
Fitting Type: Top plate caster

Load Cap.: 147kg / 325 lbs caster
APP: Light-Medium duty casters

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about 5"×1.25" TPR thermoplastic rubber wheel - Swivel top caster - 325lbs capacity \| 330PS-125032ANB-92GF.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter (D)	126 mm	5 inch
Width of Tread (W)	32 mm	1.25 inch
Wheel Material	Grey TPR on PP core wheel
Hardness of Tread	65 to 75+/-5 Shore A
Wheel Bearing	Annular ball bearing
Caster Brake	Swivel caster without brake
Fitting Type	Top plate
Plate Size (A×B)	93×63 mm	3.63×2.5 inch
Hole Centers (X×Y - X'×Y')	78×45 - 70 mm	3.06×1.75 - 2.79 inch
Plate Hole (P)	8.2 mm	0.32 inch
Swivel Offset (E)	32 mm	1.26 inch
Swivel Radius (R)	96 mm	3.81 inch
Load Height (H)	156mm	6.18 inch
Load Capacity	147 kg	325 lbs
Caster Weight	0.95 kg	2.2 lbs
Packing	30PCS/CTN
Remark	ROHS

Features

5"×1.25" TPR Thermoplastic Rubber Wheel - Swivel Top Caster - 300 lbs Capacity | 330PS-125032ANB-92GF

330 Series performance TPR (Thermoplastic Rubber) or TPE (Thermal Plastic Elastomer) wheel caster is specially engineered to provide unsurpassed durability and reliability. Non-marking thermoplastic elastomer flat tread is permanently bonded to a ribbed polyolefin wheel core. WandaTool TPR wheel offers the advantages of both hard and soft tread materials in a single wheel. Like a hard tread wheel, TPR wheel rolls easily and is very durable. Like a soft tread wheel, it rolls quietly, protects floors and resists impacts with a cushion ride. Absorbs shock to help protect equipment.

Featured 5"×1.25" Swivel top caster with thermoplastic rubber (TPR) wheel

Castor Housing: The housing is made of high-quality pressed steel.
Pressed steel double ball raceway in swivel head.
Maximum weather-ability and resistance to chemicals, water and steam
Rejects floor debris, such as metal shavings, for long service life

Custom Made 5"×1.25" Swivel top caster with thermoplastic rubber (TPR) wheel

For customization & special application options, consult please.
