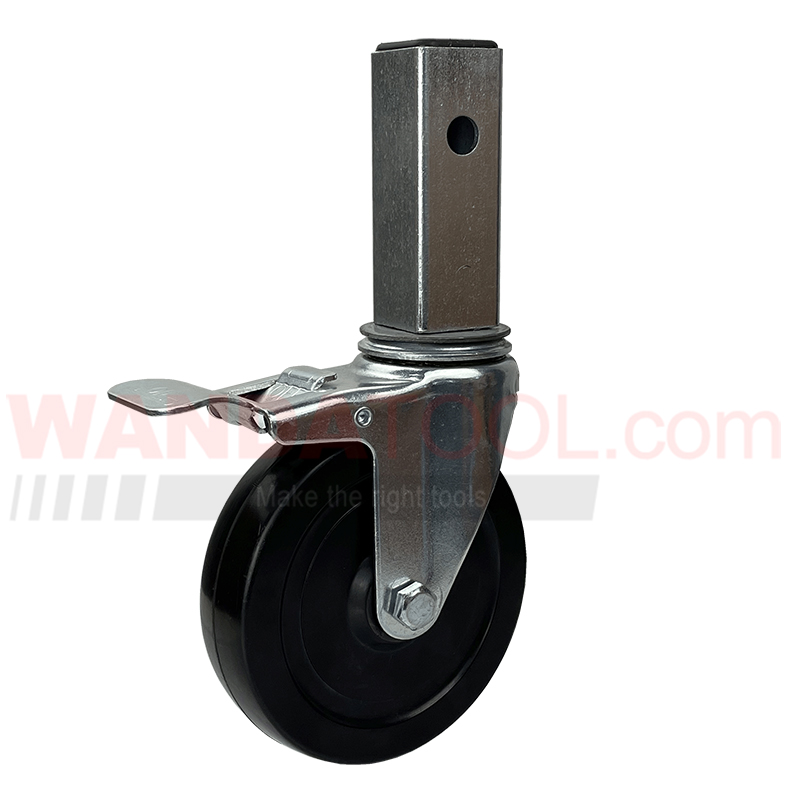

            5" Multifunction scaffolding caster - Square pipe stem locking caster - Rubber wheel caster | SCMSP-125032-02







            • Part No.: SCMSP-125032-02
              •

            • Wheel Dia.: 125 mm / 5 inch caster
              •









            • Tread Width: 32 mm / 1.25 inch caster
              •

            • Wheel Type.: Rubber wheel caster
              •









            • Caster Type: Swivel with total lock caster
              •

            • Fitting Type: Square pipe stem caster
              •









            • Load Cap.: 120 kg / 265 lbs caster
              •

            • APP: Scaffolding caster
              •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























            Technical Data


            CASTER TECHNICAL°C / mm / kg°F / inch / lbs
            Wheel Diameter (D)125 mm5 inch
            Width of Tread (W)32 mm1.25 inch
            Wheel MaterialBlack rubber wheel
            Hardness of Tread85 Shore A
            Wheel BearingPlain bore
            Caster BrakeTotal lock brake swivel caster
            Fitting TypeSquare pipe stem caster
            Square Pipe Type (A×B)32×32 mm1.26×1.26 inch
            Square Pipe Length (L)92 mm3.62 inch
            Hole Spacing (L1)63.5 mm2.5 inch
            Hole diameter (P)12.7 mm0.5 inch
            Hole Spacing (L2)N/AN/A
            Hole diameter (P2)N/AN/A
            Swivel Offset (E)28 mm1.1 inch
            Swivel Radius (R)88 mm3.5 inch
            Load Height (H)155 mm6.10 inch
            Load Capacity120 kg265 lbs
            Caster Weight1.37 kg3.02 lbs
            Packing4PCS/CTN
            Remark
            Part No.SCMSP-125032-02
            SKU6912500771


            Features


            5" Multifunction scaffolding caster - Square pipe stem locking caster - Rubber wheel caster | SCMSP-125032-02
            SCMSP series Economic multifunction casters made for use with multifunction units, otherwise known as Perry-style or bakers scaffolding are made of 2.3mm steel plate. These square pipe stem scaffold casters are designed to fit square tube posts form mobile shelf carts and other transport units. Easy to install-simply remove adjustable foot assembly on each post, and gently tap the casters into the post until fully inserted. The tread provides good floor protection along with quiet operation.
            Featured 5 inch square pipe stem scaffold caster with black rubber wheel
            • Castor Housing: The housing is made of high-quality pressed
	steel.
            • Mounting and Swivel Cross Section: 1.25 inch square pipe stem type with cross drilled hole scaffolding caster. Pressed steel double ball raceway in swivel head.
            •
	Total Lock: Integrated brakes lock caster and wheel simultaneously.
            • Black rubber wheel
            • Square pipe stem is light and economy
            Custom Made 5" Multifunction scaffolding caster with black rubber wheel
            • For customization & special application options, consult please.

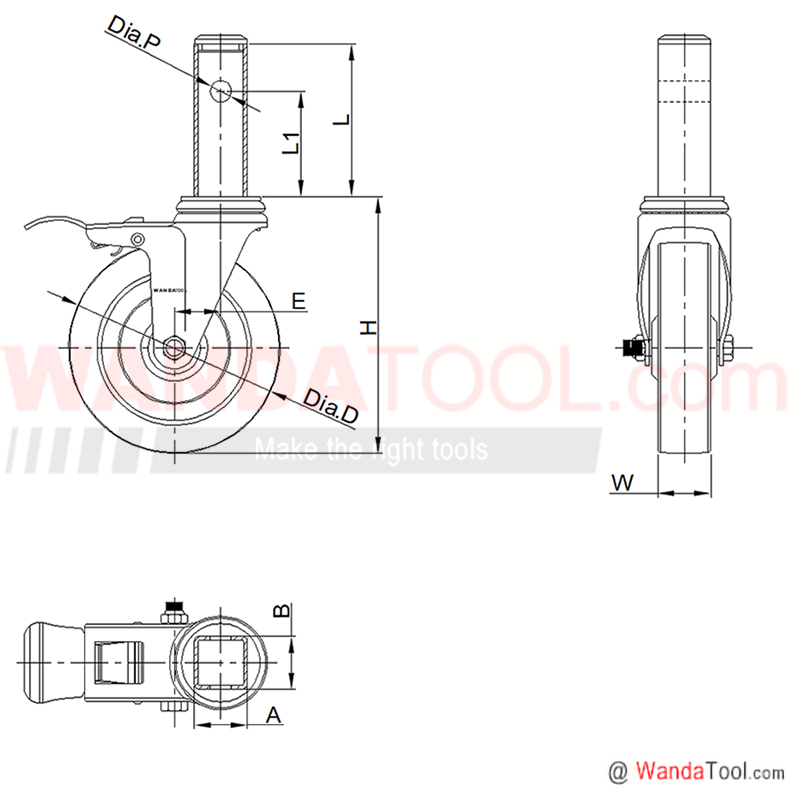

            Drawing
