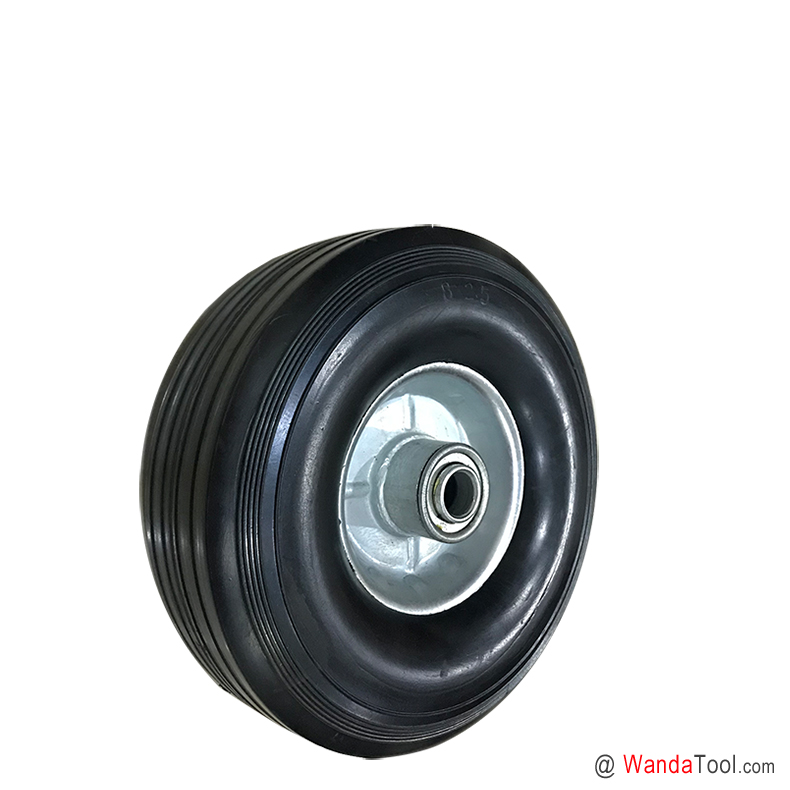

            8×2.5 inch Rubber wheel with steel core - 265 lbs Capacity | WHL-200063DFB-82







            • Part No.: WHL-200063DFB-82
              •

            • Wheel Dia.: 200 mm / 8 inch
              •









            • Tread Width: 63.5 mm / 2.5 inch
              •

            • Hub Length: 56 mm
              •









            • Wheel Mat.:  Black rubber
              •

            • Bearing: Flanged ball bearing
              •









            • Load Cap.: 130 kg / 300 lbs
              •

            • APP: Trolley wheel
              •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























            Technical Data


            WHEEL TECHNICAL°C / mm / kg°F / inch / lbs
            Wheel Diameter201 mm8 inch
            Tread Width63.5 mm2.5 inch
            Wheel Hub MaterialSteelSteel
            Wheel Hub ColorZinc platedZinc plated
            Hub Length (Plain Bore)57.5 mm2.26 inch
            Plain Bore ID35 mm1.38 inch
            Wheel Tread MaterialRubberRubber
            Wheel Tread ColorBlackBlack
            Hardness of Tread

            Wheel BearingDouble pressed bearingDouble pressed bearing
            Bearing PositionCenteredCentered
            Bearing ID16 mm0.63 inch
            Hub Length (With Bearing)62 mm2.44 inch
            Bearing Bushing SizeN/AN/A
            Bushing MaterialN/AN/A
            Wheel Axle SizeN/AN/A
            Wheel Axle MaterialN/AN/A
            Load Capacity130 kg300 lbs
            Wheel Weight2.65 kg5.9 lbs
            Part NumberWHL-200063DFB-82WHL-200063DFB-82
            SKU68200000506820000050


            Features

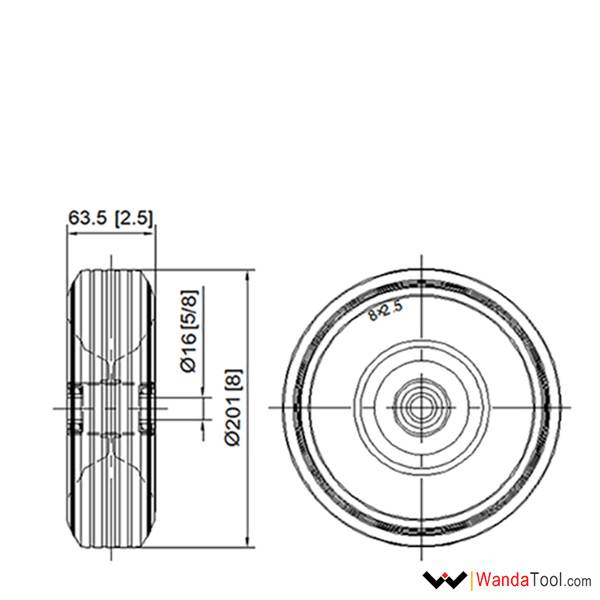

            Drawing



            Accessories & Versions



            Download
