            Low profile caster - 2 inch Low profile business machine caster - 660 lbs Capacity | 710PS(b)-050047R-04







            • Part No.: 710PS(b)-050047R-04
              •

            • Wheel Dia.: 50 mm / 2 inch
              •









            • Tread Width:  47 mm / 1.85 inch
              •

            • Wheel Mat.: Black nylon wheel
              •









            • Type:  Low profile swivel caster
              •

            • Mounting: Top plate
              •









            • Load Cap.: 300 kg / 660 lbs
              •

            • APP: Business machine caster
              •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























            Technical Data


            CASTER TECHNICAL°C / mm / kg°F / inch / lbs
            Wheel Diameter50 mm2 inch
            Width of Tread47 mm1.85 inch
            Wheel MaterialPolyamide wheelPolyamide wheel
            Hardness of TreadShore D 85Shore D 85
            Wheel BearingRoller bearingRoller bearing
            Mounting PlateTop plateTop plate
            Size of Plate100×100 mm3.94×3.94 inch
            Plate Hole Centres78×78 mm3.07×3.07 inch
            Plate Hole10.2 mm0.4 inch
            Swivel Offset22 mm0.88 inch
            Swivel Radius47 mm1.85 inch
            Overall Height79 mm3.11 inch
            Caster BrakeNo brake swivel casterNo brake swivel caster
            Standard

            Load Capacity300 kg660 lbs
            Caster Weight

            Part No.710PS(b)-050047R-04710PS(b)-050047R-04
            SKU69050002000006905000200000


            Features


            2 inch Low profile business machine swivel caster | 710PS(b)-050047R-04
            2 inch Low profile business machine swivel caster provides maximum weight distribution at lowest possible overall height. Designed for business machines and other OEM products including medical equipment and electrical/electronic enclosures.
            Featured 2" Business machine low profile caster
            ?	Top Plate & Yoke Base: Cold formed from 5 mm steel plate. 5 mm steel formed to increase strength and welded inside and outside to yoke base
            ?	Swivel Section: Smooth formed, double ball bearing raceways swivel head.
            ?	Bearing & Axle: Roller bearing with drilled hardened steel spanner bushing
and steel side washers. 1/2" diameter wheel axle complete with lock nut.
            ?	Lubrication: Zerk in swivel section and wheel for easy lubrication.
            ?	Finish: Black finished and Zinc plated available to resist corrosion.
            Custom made 2 inch Low profile business machine swivel caster

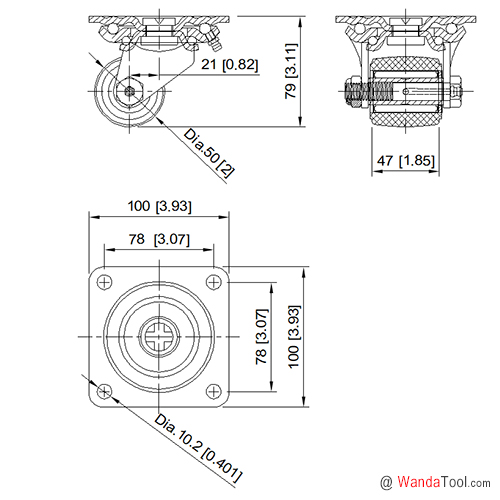

            Drawing
