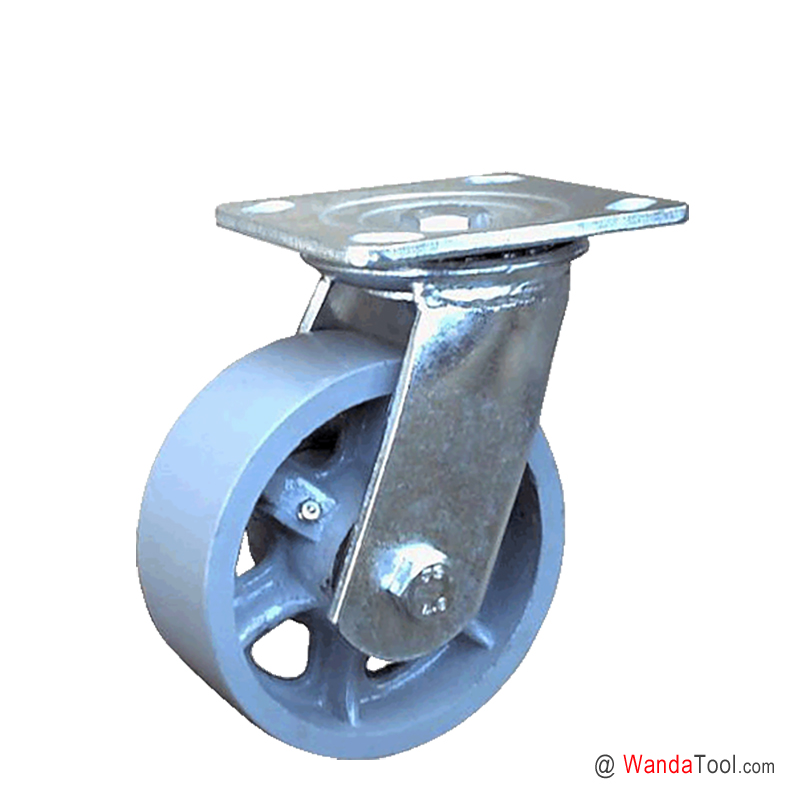

Cast iorn caster - 5×2 inch Cast iron swivel caster - 990 lbs Capacity | 600PS-125050R-01

Part No.: 600PS-125050R-01
Wheel Dia.: 125 mm / 5 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Type: Cast iron wheel caster

Caster Type: Swivel caster
Fitting Type: Top plate caster

Load Cap.: 450 kg / 990 lbs
APP: Medium heavy duty caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Cast iorn caster - 5×2 inch Cast iron swivel caster - 990 lbs Capacity \| 600PS-125050R-01.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	125 mm	5 inch
Tread Width	50 mm	2 inch
Wheel Material	Cast iorn wheel	Cast iorn wheel
Hardness of Tread
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Top plate caster	Top plate caster
Size of Plate	115×100 mm	4.5×4 inch
Plate Hole Centers	92×75 to 75×67 mm	3.625×3 to 3×2.625 inch
Plate Hole	11 mm	0.43 inch

Swivel Offset	30 mm	1.18 inch
Swivel Radius	93 mm	3.67 inch
Overall Height	163 mm	6.42 inch
Caster Brake	No brake casters	No brake casters
Standard
Load Capacity	450 kg	990 lbs
Caster Weight
Part No.	600PS-125050R-01	600PS-125050R-01
SKU	6912506083	6912506083

Features

5 × 2 inch Medium heavy duty cast iorn swivel caster | 600PS-125050R-01

5"×2" Cast iron swivel casters have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PS-125050R-01 Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.

Featured 5"×2" Medium heavy duty cast iorn swivel caster

Top Plate & Yoke Base: Cold formed from 6mm steel plate. Contact us for Custom Made notched yoke base for factory or installable 4-position swivel lock.
Swivel Section: Smooth formed, double ball bearing raceways swivel head.
Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to yoke base.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in swivel section and wheel for easy lubrication.
Finish: Zinc plated to resist corrosion.

Custom made 5"×2" Medium heavy duty cast iorn swivel caster

Yoke Base: Notched yoke base for factory or installable 4-position swivel lock available.
Swivel head sealed: Rubber seals available.
Side Washers: Metal step retaining thrust washers available.
Wheel Axle: 1/2 inch hollow axle with grease fitting available.
Finish: Electrophoresis black plated to resist corrosion available.
