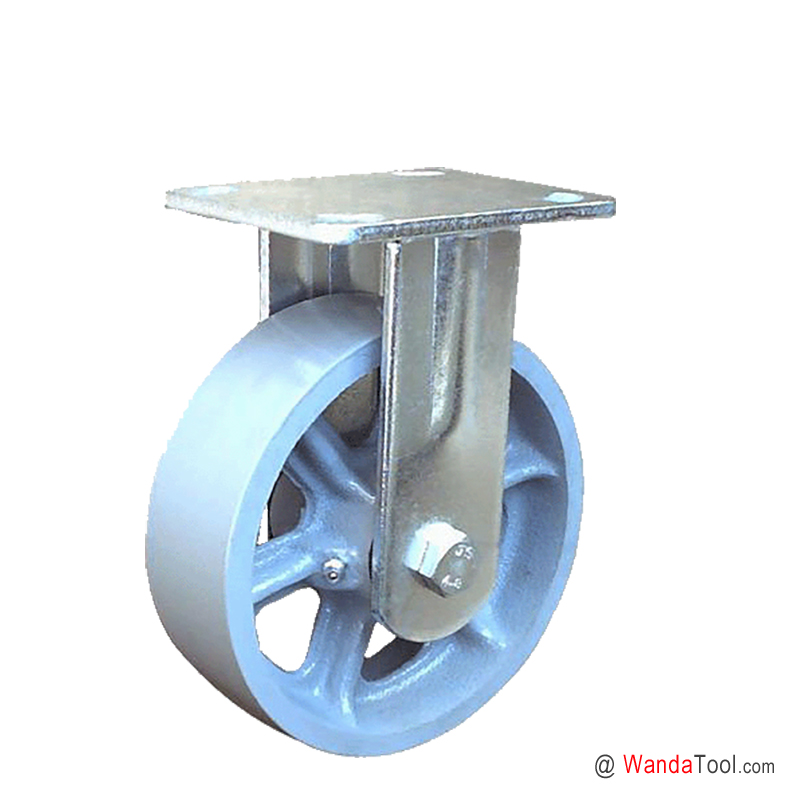

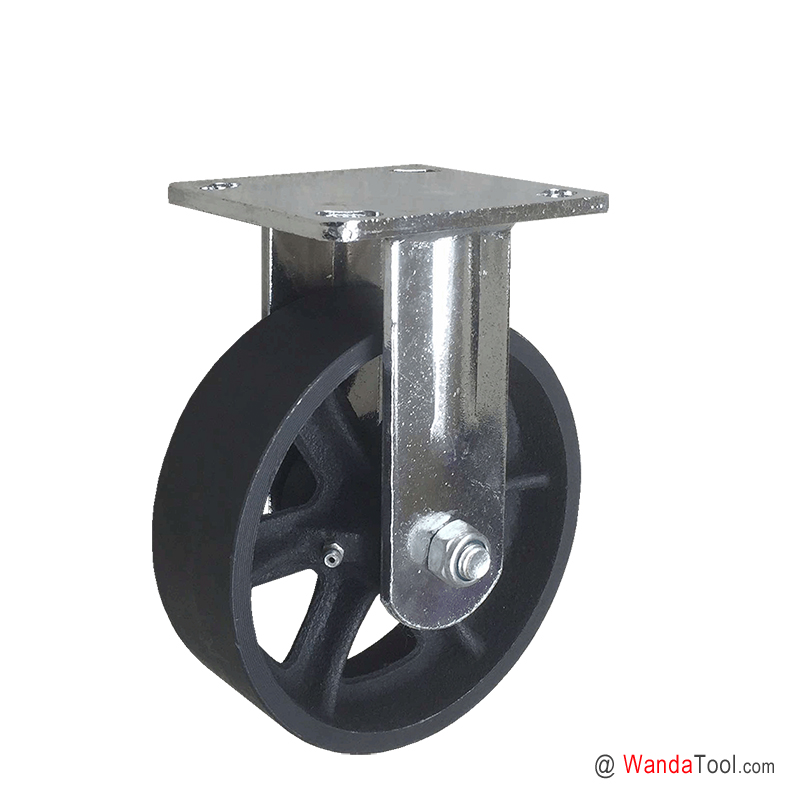

Cast iron caster - 6"×2" Rigid caster - 1100 lbs Capacity | 600PF-150050R-01

Part No.: 600PF-150050R-01
Wheel Dia.: 150 mm / 6 inch caster

Tread Width: 50 mm / 2 inch caster
Wheel Mat.: Cast iron wheel caster

Type: Rigid caster
Mounting: Top plate caster

Load Cap.: 500 kg / 1100 lbs caster
APP: Medium heavy duty industrial caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about Cast iron caster - 6"×2" Rigid caster - 1100 lbs Capacity \| 600PF-150050R-01.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	150 mm	6 inch
Tread Width	50 mm	2 inch
Wheel Material	Cast iorn wheel	Cast iorn wheel
Hardness of Tread
Wheel Bearing	Roller bearing	Roller bearing
Fitting Type	Top plate caster	Top plate caster
Size of Plate	115×100 mm	4.5×4 inch
Plate Hole Centers	92×75 to 75×67 mm	3.625×3 to 3×2.625 inch
Plate Hole	11 mm	0.43 inch
Swivel Offset	N/A	N/A
Swivel Radius	N/A	N/A
Overall Height	189 mm	7.45 inch
Caster Brake	No brake rigid caster	No brake rigid caster
Standard
Load Capacity	500 kg	1,100 lbs
Caster Weight
Part No.	600PF-150050R-01	600PF-150050R-01
SKU	6915006010	6915006010

Features

6"×2" Medium heavy duty cast iorn rigid caster | 600PF-150050R-01

6"×2" Cast iron rigid casters have exceptionally long wear life and they are ideal for warehousing, general material handling and manufacturing. In addition, they can be used in temperature extremes. 600PF-150050R-01 Series medium heavy duty casters with cast iron caster wheels are cold formed steel and recommended for medium to medium heavy duty applications.

Featured 6"×2" Medium heavy duty cast iorn rigid caster

Top Plate: Cold formed from 6mm steel plate.
Fork Legs: 6 mm steel formed to increase strength and welded inside and outside to top plate.
Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
Lubrication: Zerk in wheel for easy lubrication.
Finish: Zinc plated to resist corrosion.
