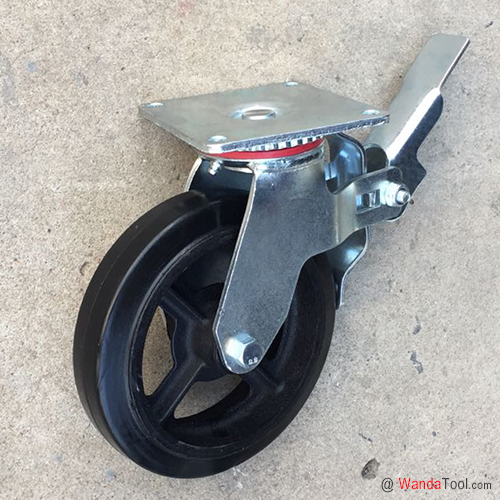

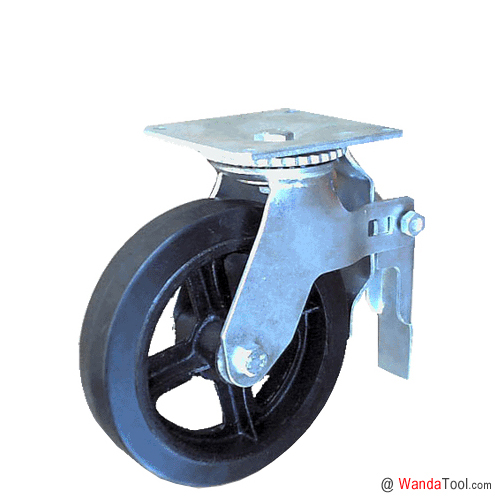

            Scaffolding caster - 8 in. Scaffold caster - Top plate scaffold caster with moldon rubber wheel | SCAPA-200050R-12







            • Part No.: SCAPA-200050R-12
              •

            • Wheel Dia.: 200 mm / 8 inch caster
              •









            • Tread Width: 50 mm / 2 inch caster
              •

            • Wheel Type: Moldon rubber wheel
              •









            • Caster Type: Total lock swivel caster
              •

            • Fitting Type: Top plate caster
              •









            • Load Cap.: 300 kg / 660 lbs caster
              •

            • APP: Scaffolding caster
              •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























            Technical Data


            CASTER TECHNICAL°C / mm / kg°F / inch / lbs
            Wheel Diameter200 mm8 inch
            Width of Tread50 mm2 inch
            Wheel MaterialRubber on cast iron wheelRubber on cast iron wheel
            Hardness of TreadShore A 85Shore A 85
            Wheel BearingRoller bearingRoller bearing
            Fastening TypeTop plate casterTop plate caster
            Size of Plate139×126 mm5.5×5 inch
            Plate Hole Centers114×104 mm4.5×4.1 inch
            Plate Hole11.0 mm0.44 inch
            Swivel Offset53 mm2.08 inch
            Swivel Radius153 mm6.02 inch
            Overall Height237 mm9.33 inch
            Caster BrakeTotal lock swivel casterTotal lock swivel caster
            Standard

            Load Capacity300 kg660 lbs
            Caster Weight

            Part No.SCAPA-200050R-12SCAPA-200050R-12
            SKU69200007700006920000770000


            Features


            8"×2" Top plate scaffold caster with moldon rubber wheel |
	SCAPA-200050R-12
            8-inch Moldon rubber scaffold casters with top plate are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAPA-200050R-12 series scaffold caster has the characteristics of scientific design, convenient operation and safe use.
            Featured 8 inch Top plate scaffold caster with moldon rubber on cast iron wheel
            ?	Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.
            ?	Mounting and Swivel Cross Section: Top plate scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.
            ?	Swivel head sealed: Polyurethane seal ring keeps out debris.
            ?	Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.
            ?	Lubrication: Zerk in swivel section and wheel for easy lubrication.
            ? Moldon Rubber on Cast Iron Wheel: This Mold-on cushion rubber treads are vulcanized to cast iron cores. The soft rubber tread affords a cushion effect to the load. These wheels are highly shock-absorbing and provide quiet operation, while dampening vibration.
            ?	Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
            ?	Lubrication: Zerk in swivel section and wheel for easy lubrication.
            Custom Made  8 inch Top plate scaffold caster with moldon rubber on cast
	iron wheel
            Custom design scaffolding caster available。
