Scaffolding caster - 8 in. Scaffold caster - 59mm OD Tube stem scaffold caster with moldon PU wheel | SCAIB-200050R-13

Technical Data

Features

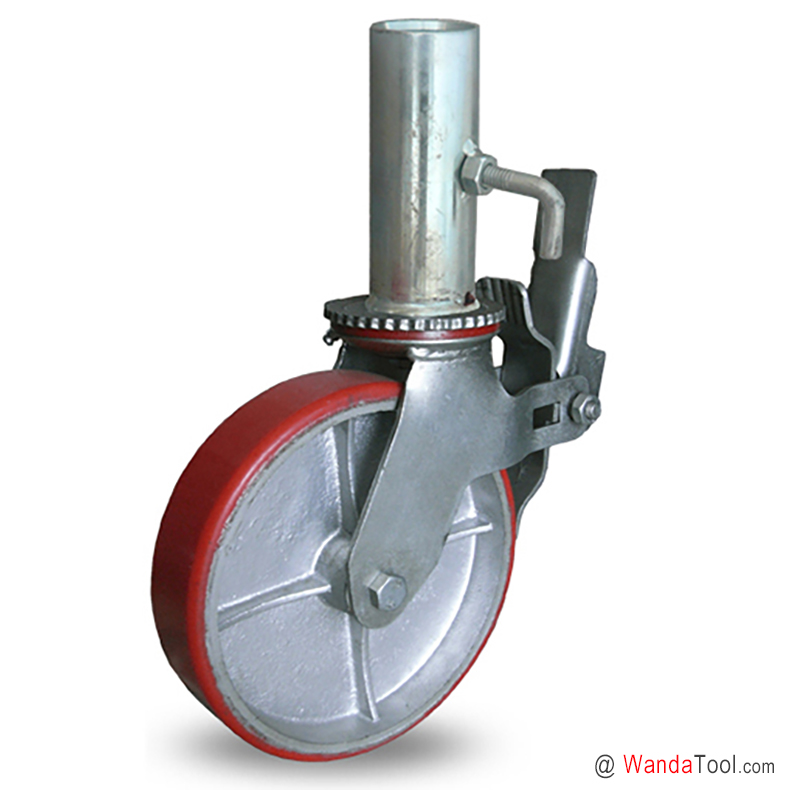

8"×2" Tube stem scaffold caster with moldon PU on cast iorn wheel | SCAIB-200050R-13

8-inch Polyurethane on cast iron core scaffold casters with 59mm OD tube stem are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAIB-200050R-13 series scaffold caster has the characteristics of scientific design, convenient operation and safe use.

WandaTool's SCAIB tube type scaffold castors are designed to accommodate a variety of scaffold tubing including Mild Steel or Aluminium with an outer diameter of 48.3mm. Solid round is also suitable with an outer diameter not exceeding 50mm.

Featured 8 inch Tube stem scaffold caster with moldon PU on cast iorn core wheel

? Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment. Formed rig is stronger than welded design.

? Mounting and Swivel Cross Section: 59mm OD and 51mm ID tube type scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.

? Swivel head sealed: Polyurethane seal ring keeps out debris.

? Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.

? Lubrication: Zerk in swivel section and wheel for easy lubrication.

? Polyurethane on cast iron wheels are composed of a polyurethane elastomer, open cast molded, on clean, close tolerance cores. The polyurethane tread is chemically bonded to a cast iron core. High capacity polyurethane protects floors, is non-marking and delivers a quieter operation than standard metal wheels.

? Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.

? Lubrication: Zerk in swivel section and wheel for easy lubrication.

Custom Made 8 inch Tube stem scaffold caster with moldon polyurethane wheel

Custom design scaffolding caster available。
