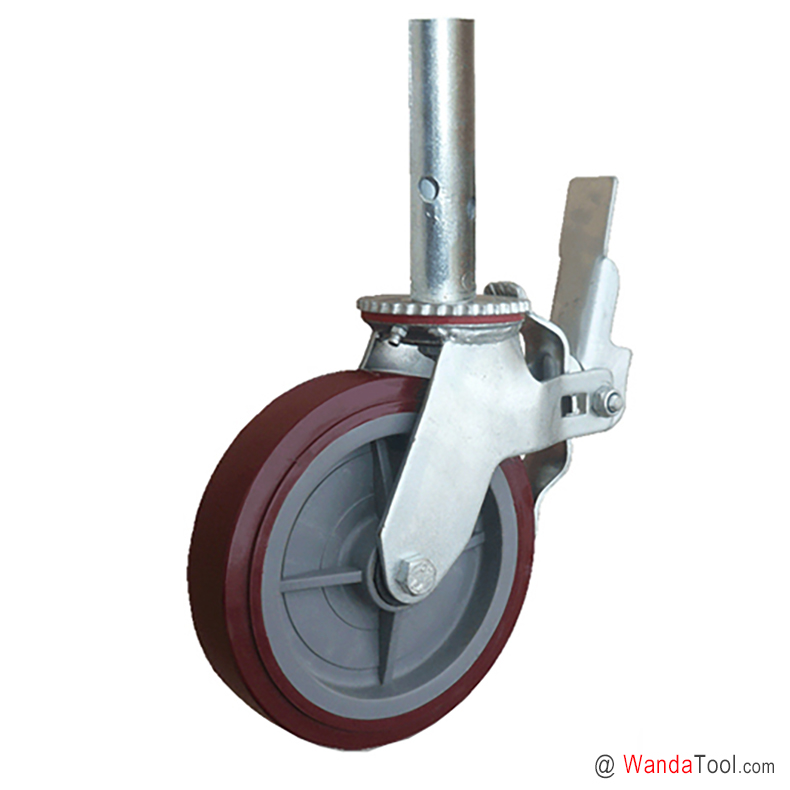

            Scaffolding caster - 8" Scaffold caster - 38mm OD Tube stem scaffold caster with TPU wheel | SCAIA-200050R-93







            • Part No.: SCAIA-200050R-93
              •

            • Wheel Dia.: 200 mm / 8 inch caster
              •









            • Tread Width: 50 mm / 2 inch caster
              •

            • Wheel Type: PU on PP wheel
              •









            • Caster Type: Total lock swivel caster
              •

            • Fitting Type: 38mm OD tube caster
              •









            • Load Cap.: 300 kg / 660 lbs caster
              •

            • APP: Tube type scaffolding caster
              •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























            Technical Data


            CASTER TECHNICAL°C / mm / kg°F / inch / lbs
            Wheel Diameter200 mm8 inch
            Width of Tread50 mm2 inch
            Wheel MaterialTPU on PP wheelTPU on PP wheel
            Hardness of TreadShore A 90Shore A 90
            Wheel BearingRoller bearingRoller bearing
            Fitting TypeTube type casterTube type caster
            Tube Type38 mm OD / 32 mm ID1.5 inch OD / 1.25 inch ID
            Tube Length150 mm6 inch
            Hole Spacing (L1)75 mm3 inch
            Hole diameter (P1)--
            Hole Spacing (L2)--
            Hole diameter (P2)--
            Swivel Offset53 mm2.08 inch
            Swivel Radius153 mm6.02 inch
            Overall Height237 mm9.33 inch
            Caster BrakeSwivel caster with total lockSwivel caster with total lock
            Load Capacity300 kg660 lbs
            Caster Weight

            Part No.SCAIA-200050R-93SCAIA-200050R-93
            SKU69200000820006920000082000


            Features


            8"×2" 38mm OD Tube stem scaffold caster with TPU wheel |
	SCAIA-200050R-93
            8-inch TPU scaffold casters with 38mm OD tube stem are equipped with total lock brakes. This is a scaffold caster specially designed for the standing and short-distance movement of construction scaffolding equipment. 440-1100lbs load capacity per caster, features an easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning. SCAIA-200050R-93 series scaffold caster has the characteristics of scientific design, convenient operation and safe use.
            WandaTool's SCAIA tube type scaffold castors are designed to accommodate a variety of scaffold tubing including Mild Steel or Aluminium
	with an inside diameter of 40mm.
            Featured 8 inch 38mm OD Tube stem scaffold caster with TPU wheel
            ?	Caster Housing: The housing is made of high-quality pressed steel and double-sided welding to upper raceway way, which can withstand high load environment.  Formed rig is stronger than welded design.
            ?	Mounting and Swivel Cross Section: 38mm OD and 32mm ID tube type scaffolding caster. Pressed steel double ball raceway swivel. King bolt and nut construction for added strength.
            ?	Swivel head sealed: Polyurethane seal ring keeps out debris.
            ?	Total lock brake: Easy to engage total locks that locks both wheel and swivel and allow easy locking and repositioning.
            ?	Lubrication: Zerk in swivel section and wheel for easy lubrication.
            ? Polyurethane on Polypropylene Wheel: This polyurethane wheel has excellent properties where wash-down of material handling equipment is required. Tread is mechanically locked to an injection molded polymer core to prevent separation. Polyurethane wheels offer greater load capacity than rubber. They offer excellent floor protection. These wheels resist chemicals, acids, caustics and oils.
            ?	Bearing & Axle: Standard straight roller bearing with drilled hardened steel spanner bushing and plastic side retaining thrust washers. 12.5mm diameter wheel solid axle complete with lock nut.
            ?	Lubrication: Zerk in swivel section and wheel for easy lubrication.
            Custom Made 8 inch 38mm OD Tube stem scaffold caster with TPU wheel
            Custom design scaffolding caster available。
