5 inch Scaffold caster - Square pipe stem locking caster - Rubber wheel caster | SCSSP-125032-02

Part No.: SCSSP-125032-02
Wheel Dia.: 125 mm / 5 inch caster

Tread Width: 32 mm / 1.25 inch caster
Wheel Type.: Rubber wheel caster

Caster Type: Swivel with total lock caster
Fitting Type: Square pipe stem caster

Load Cap.: 120 kg / 265 lbs caster
APP: Scaffolding caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about 5 inch Scaffold caster - Square pipe stem locking caster - Rubber wheel caster \| SCSSP-125032-02.

Details

Technical Data

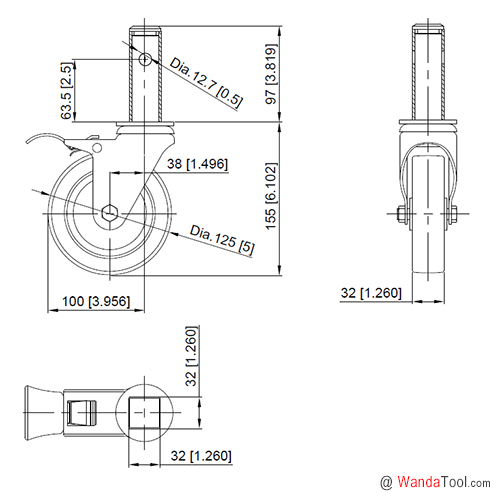

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	125 mm	5 inch
Width of Tread	32 mm	1.25 inch
Wheel Material	Black rubber wheel	Black rubber wheel
Hardness of Tread	Shore A 85	Shore A 85
Wheel Bearing	Plain bearing	Plain bearing
Fitting Type	Square pipe stem caster	Square pipe stem caster
Square Pipe Type	32×32 mm	1.26×1.26 inch
Square Pipe Length	100 mm	4 inch
Hole Spacing (L1)	63.5 mm	2.5 inch
Hole diameter (P1)	12.7 mm	0.5 inch
Hole Spacing (L2)	N/A	N/A
Hole diameter (P2)	N/A	N/A
Swivel Offset	38 mm	1.5 inch
Swivel Radius	100 mm	4 inch
Overall Height	155 mm	6.10 inch
Caster Brake	Total lock swivel caster	Total lock swivel caster
Load Capacity	120 kg	265 lbs
Caster Weight	1.45 kg	3.3 lbs
Part No.	SCSSP-125032-02	SCSSP-125032-02
SKU	6912500770	6912500770

Features

5 inch Scaffold caster - Square pipe stem locking caster - Rubber wheel caster | SCSSP-125032-02

SCSSP series square pipe stem scaffold casters are designed to fit square tube posts form mobile shelf carts and other transport units. Easy to install-simply remove adjustable foot assembly on each post, and gently tap the casters into the post until fully inserted. Non-marking, the tread provides good floor protection along with quiet operation.

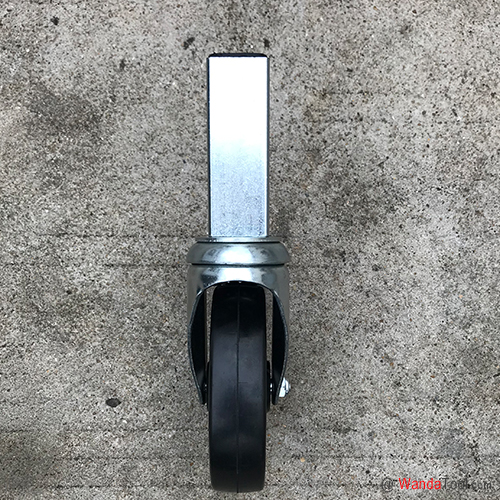

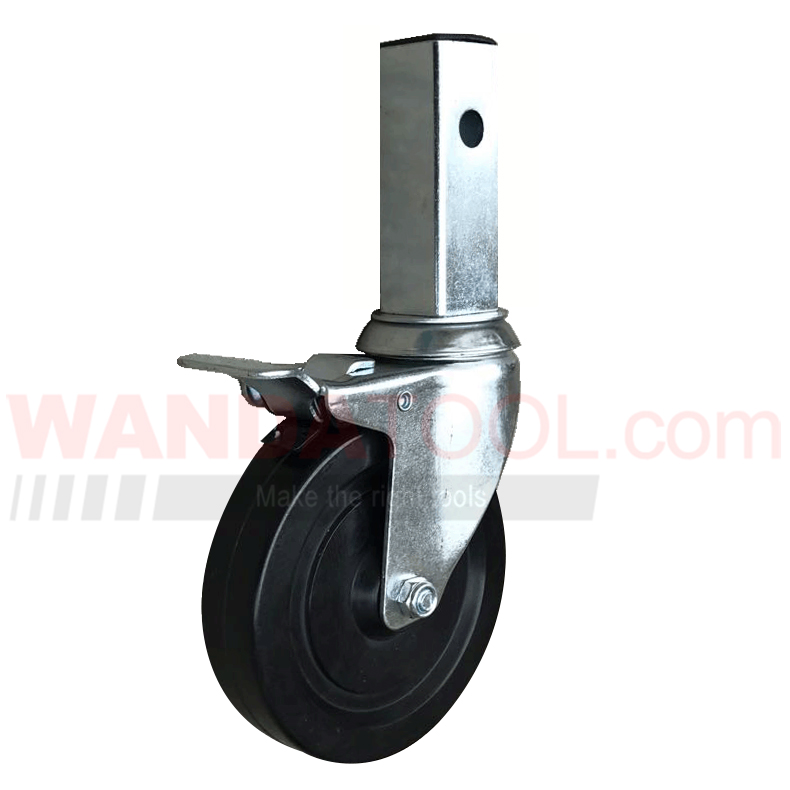

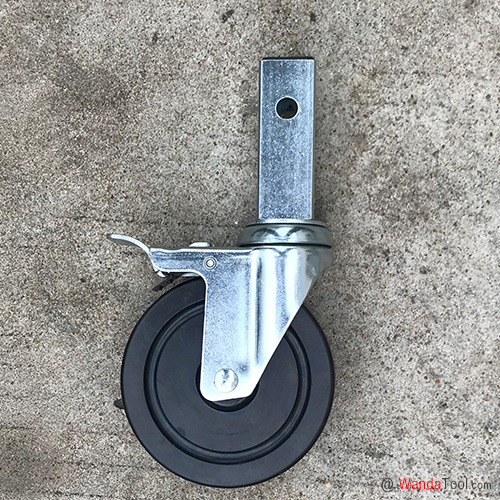

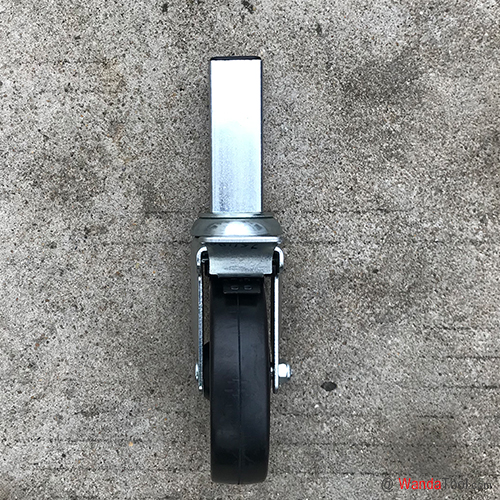

Featured 5 inch square pipe stem scaffold caster with black rubber wheel

Castor Housing: The housing is made of high-quality pressed steel.
Mounting and Swivel Cross Section: 1.25 inch square pipe stem type with cross drilled hole scaffolding caster. Pressed steel double ball raceway in swivel head.

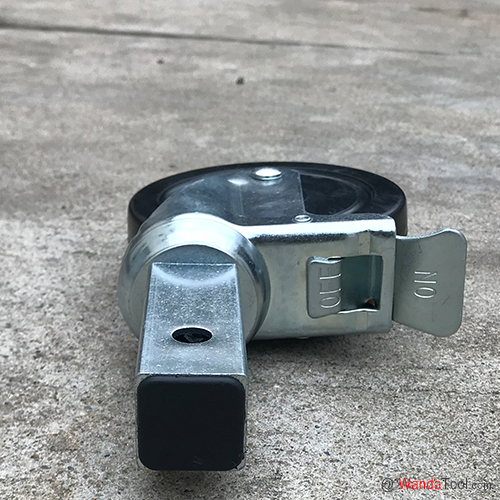

Total lock brake caster.
Black rubber wheel
