5 inch Scaffold caster - Round stem swivel locking caster - Rubber caster | SCSRA-125032-02

Part No.: SCSRA-125032-02
Wheel Dia.: 125 mm / 5 inch caster

Tread Width: 32 mm / 1.25 inch caster
Wheel Type: Rubber wheel

Caster Type: Swivel with total lock caster
Fitting Type: Solid round stem caster

Load Cap.: 120 kg / 265 lbs caster
APP: Scaffolding caster

Order Technical Support

*　Product Name：	Please enter the product name ordered
*　Name：	Please enter your name
*　Tel：	Please enter your phone
*　Email：	Please enter your correct email address
*　Order message：	Please enter your order message
	Yes, I'd like to receive news about 5 inch Scaffold caster - Round stem swivel locking caster - Rubber caster \| SCSRA-125032-02.

Details

Technical Data

CASTER TECHNICAL	°C / mm / kg	°F / inch / lbs
Wheel Diameter	125 mm	5 inch
Width of Tread	32 mm	1.25 inch
Wheel Material	Black rubber wheel	Black rubber wheel
Hardness of Tread	Shore A 85	Shore A 85
Wheel Bearing	Plain bore bearing	Plain bore bearing
Fitting Type	Solid round stem caster	Solid round stem caster
Solid Stem O.D.	34.5 mm	1.36 inch
Square Stem Length	70 mm	2.756 inch
Hole Spacing (L1)	63.5 mm	2.5 inch
Hole diameter (P1)	12.7 mm	0.5 inch
Hole Spacing (L2)	N/A	N/A
Hole diameter (P2)	N/A	N/A
Swivel Offset	35 mm	1.38 inch
Swivel Radius	97.5 mm	3.84 inch
Overall Height	160 mm	6.30 inch
Caster Brake	Total lock swivel caster	Total lock swivel caster
Load Capacity	120 kg	265 lbs
Caster Weight	kg	lbs
Part No.	SCSRA-125032-02	SCSRA-125032-02
SKU	6912500830	6912500830

Features

5 inch Scaffold caster - Solid round stem locking caster - Black rubber wheel scaffold caster | SCSRA-125032-02

SCSRA series Solid round stem scaffold casters are designed to fit round tube posts for mobile shelf carts and other transport units. Easy to install-simply remove adjustable foot assembly on each post, and gently tap the casters into the post until fully inserted. Non-marking, the tread provides good floor protection along with quiet operation.

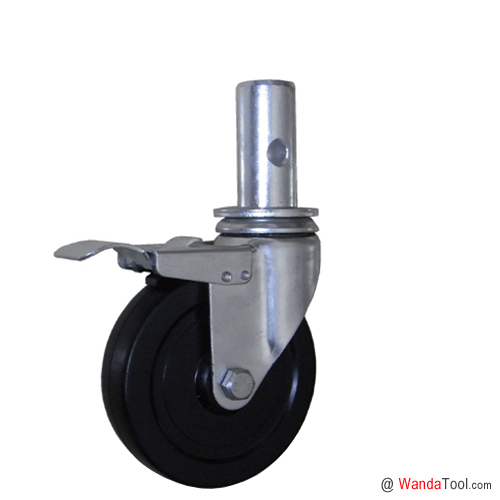

Featured 5 inch solid round stem scaffold caster with black rubber wheel

Castor Housing: The housing is made of high-quality pressed steel.
Mounting and Swivel Cross Section: 1.36 inch solid round stem type with cross drilled hole scaffolding caster. Pressed steel double ball raceway in swivel head.
Total lock brake caster.
Black rubber wheel.
