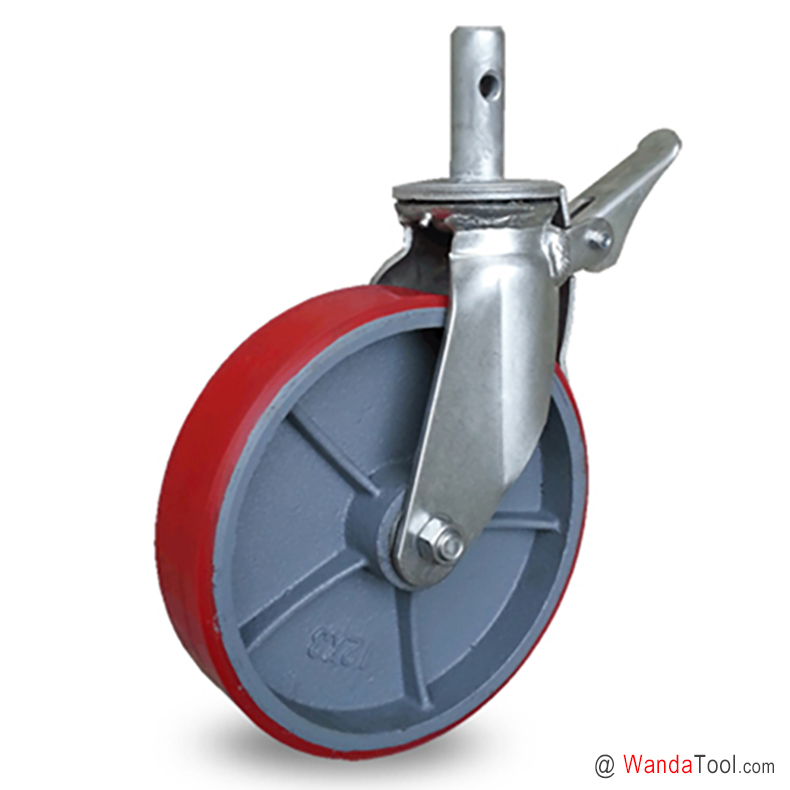

            Scaffold caster - 12 inch Solid stem scaffolding caster with PU on semi-steel wheel | SCUFA-300075R-13







            • Part No.: SCUFA-300075R-13
              •

            • Wheel Dia.: 300 mm / 12 inch caster
              •









            • Tread Width: 75mm / 3inch caster
              •

            • Wheel Mat.: PU on semi steel caster
              •









            • Caster Type: Total lock swivel caster
              •

            • Fitting Type: Solid stem scaffold caster
              •









            • Load Cap.: 800kg / 1760 lbs
              •

            • APP: Scaffolding caster
              •



















				*　Product Name：
				　


				Please enter the product name ordered





                *　Name：
                　


                  Please enter your name




                *　Tel：
                　


                  Please enter your phone




                *　Email：
                　


                  Please enter your correct email address




                *　Order message：
                　


                  Please enter your order message





                　









                　






























            Technical Data


            CASTER TECHNICAL°C / mm / kg°F / inch / lbs
            Wheel Diameter300 mm12 inch
            Tread Width75 mm3 inch
            Wheel MaterialPU on cast iorn wheelPU on cast iorn wheel
            Hardness of TreadShore A 95Shore A 95
            Wheel BearingRoller bearingRoller bearing
            Fitting TypeSolid round stemSolid round stem
            Stem SizeOD34.5×100 mmOD1.36×4 inch
            Hole Spacing (L1)63.5 mm2.5 inch
            Hole diameter (P1)12.7 mm0.5 inch
            Hole Spacing (L2)50.8 mm2 inch
            Hole diameter (P2)12.7 mm0.5 inch
            Swivel Offset73 mm2.87 inch
            Swivel Radius223 mm8.78 inch
            Overall Height368 mm14.5 inch
            Caster BrakeTotal lock brake castersTotal lock brake casters
            Load Capacity800 kg1,760 lbs
            Caster Weight

            Part No.SCUFA-300075R-13SCUFA-300075R-13
            SKU6930000020069300000200


            Features







            Drawing



            Accessories & Versions



            Download
